Views: 0 Author: Site Editor Publish Time: 2025-07-14 Origin: Site
In the intricate world of automotive suspension systems, control arm bushings play a vital role in delivering smooth handling and optimal ride comfort. These small but essential components absorb road shocks, reduce vibration, and help maintain wheel alignment. Whether you're a DIY car enthusiast or a professional mechanic, understanding what a bushing on car is and how to replace or install it can help you extend the life of your suspension system.
This article covers what control arm bushings are, how to install them, and how to replace control arm bushings, with a focus on both upper and lower control arm bushings. Whether you’re dealing with squeaky suspension or uneven tire wear, this guide has you covered.

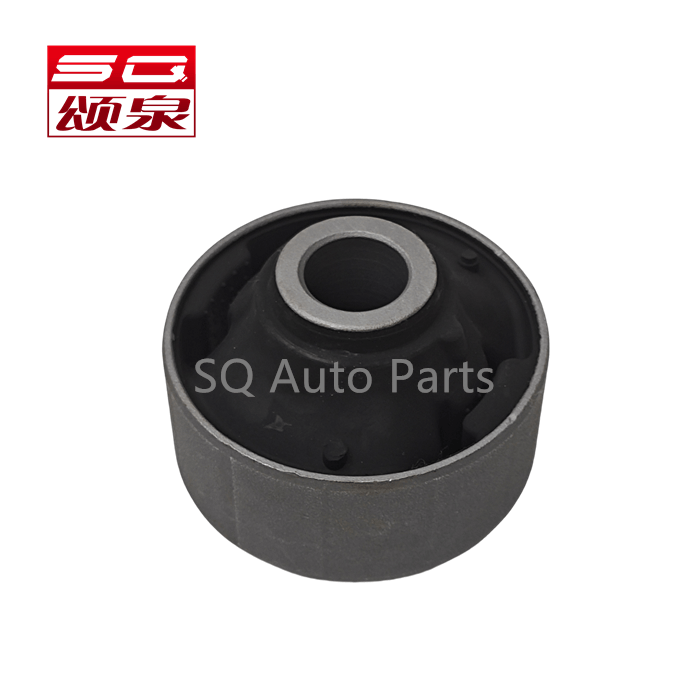

Control arm bushings are cylindrical rubber or polyurethane components located between the control arms and the vehicle's frame or suspension subframe. These bushings serve as flexible joints, allowing the control arms to pivot and absorb vibrations and minor shocks from road surfaces.
Dampen vibration: Provide smoother rides by absorbing road vibrations.
Maintain alignment: Help keep wheels properly aligned for better steering control.
Prevent metal-to-metal contact: Reduce wear and tear on suspension components.
Improve vehicle handling: Provide precise control over the vehicle’s suspension movement.
| Material | Benefits | Drawbacks |
|---|---|---|
| Rubber | Smooth ride, cost-effective | Wears out faster, less responsive |
| Polyurethane | Durable, better performance | Slightly harsher ride, may squeak |
| Solid metal | Used in performance/race applications | Very harsh ride, not for daily driving |
The bushing on car typically exists at the joints where suspension components connect. For control arms specifically, the bushings are found at:
The frame side of the upper and lower control arms
The connecting points to the vehicle’s chassis or subframe
There are generally two control arms per wheel (upper and lower), each with its own set of bushings. This means a typical car could have anywhere from 8 to 12 control arm bushings depending on the suspension design.
Worn or damaged bushings can significantly affect your car’s handling and safety. Here are some common symptoms:
Clunking or banging noises when driving over bumps
Poor steering response
Uneven tire wear
Excessive vibration through the steering wheel
Pulling to one side while driving
If you're installing new bushings on a control arm (either aftermarket or OE replacements), follow these steps:
Jack and jack stands
Socket wrench set
Ball joint separator
Hydraulic press or bushing installation tool
Torque wrench
Safety gloves and eye protection
Use a jack and secure the vehicle on jack stands. Make sure the wheel is removed for access to the suspension.
Detach the control arm by loosening bolts that connect it to the frame and steering knuckle.
Use a hydraulic press or a special tool to press the old bushings out of the control arm.
Remove any rust or debris from the control arm’s bushing housing using a wire brush or sandpaper.
Press the new bushings into place. Ensure they are properly seated and aligned.
Bolt the control arm back into its mounting points and torque the bolts to manufacturer specifications.
Lower the vehicle and test for noises or handling issues.
Tip: Always replace bushings in pairs (left and right sides) to ensure balanced handling.
Replacement involves many of the same steps as installation, but here we focus more on dealing with worn or failed bushings in existing control arms.
Consider replacing the entire control arm if the bushings are integrated and non-removable.
Use penetrating oil on old bolts to make disassembly easier.
Mark the alignment of the control arm before removal to maintain suspension geometry.
| Condition | Action |
|---|---|
| Slight cracking or wear | Monitor, no immediate replacement |
| Excessive movement/play | Replace bushings |
| Loud clunking or vibration | Immediate replacement needed |
| Uneven tire wear | Likely a suspension alignment issue; check bushings |
Understanding the relationship between control arms and bushings is crucial. The control arm acts as a lever between the wheel hub and the car frame, while the bushings allow that lever to move freely and smoothly.
Some modern vehicles have pre-assembled control arm and bushing units, which simplifies replacement but can be more costly. Others have serviceable bushings, allowing you to just replace the rubber parts instead of the whole control arm.
Upper Control Arm Bushings:
Typically smaller
Deal with camber angle adjustments
Located closer to the vehicle’s engine bay
Lower Control Arm Bushings:
Usually larger
Bear more weight and absorb more shock
Often fail more quickly than upper ones due to stress
Lower bushings generally wear out faster and are more prone to failure.
Always check both upper and lower arms when diagnosing suspension problems.
A: Most rubber bushings last between 80,000–100,000 km, but polyurethane types can last longer with proper care.
A: It’s not recommended. Worn bushings can lead to poor handling, tire wear, and even safety issues in severe cases.
A: You can replace just the bushings if they’re serviceable. If bushings are molded into the arm or the arm is damaged, replace the entire unit.
A: Polyurethane aftermarket bushings offer better performance and longevity but may sacrifice some ride comfort compared to OEM rubber types.
Control arm bushings are small but critical components in your car’s suspension system. Knowing what they are, how to install control arm bushings, and how to replace them helps ensure a smoother, safer driving experience. Whether you're upgrading performance or fixing an annoying suspension noise, proper attention to your control arms and bushings pays off.
